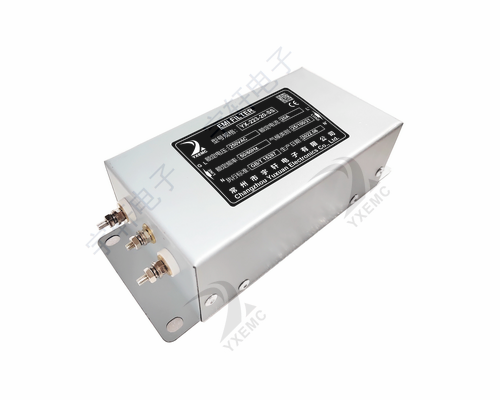

特 點 Features

● 兩級共模加差模高性能電源濾波器。Two stage common mode plus

differential mode high performance power filter.

● 泄漏電流小。The leakage current is small.

● 底板式安裝，簡單方便。Bottom plate installation, simple and convenient.

應 用 Application

● 大多數數字設備（尤其開關電源），可用來抑制連續或間隙性脈沖干擾，尤其適用于低阻抗負載場合。

性能指標 Characteristcs

產品型號表 Filter Table

電原理圖Typical Circuit Diagram

Fig.1 Fig.2

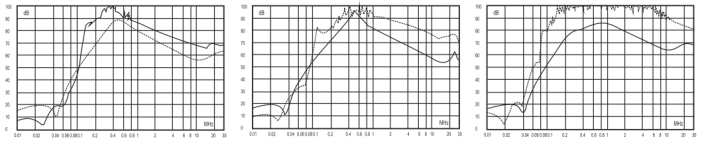

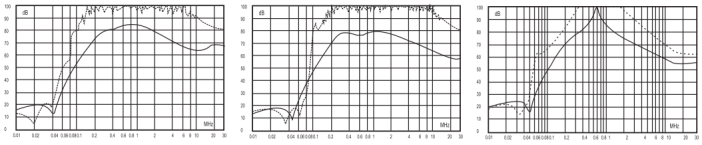

插入損耗 Insertion LOSS in dB (50Ω測量系統，IEC/CISPR No.17號出版物)

1A~6A 10A 15A

20A 30A 40A

100A

外形尺寸圖 Outline Drawing : mm

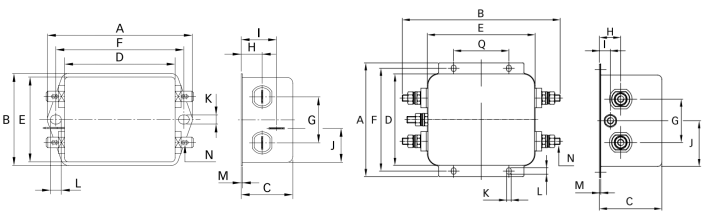

Fig.1 (1A~6A) Fig.2 (10A)

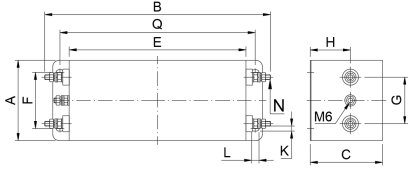

Fig.3 (15~30A)

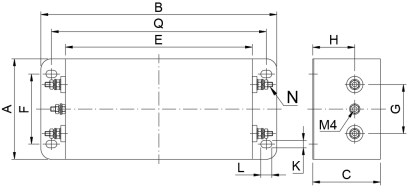

Fig.4 (40A)

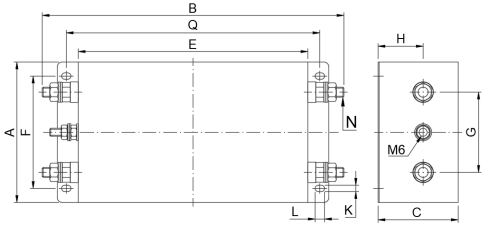

Fig.5 (100A)
