特 點 Features

● 體積小，性?xún)r(jià)比高。Small size, high cost performance.

● 金屬殼體采用鍍鎳鋼板和不銹鋼大蓋板組合式結構，美觀大氣，機械強度高，耐腐蝕性強。

The metal shell adopts the combined structure of nickel plated steel plate and stainless steel large cover plate, which is beautiful and atmospheric, with high mechanical strength and strong corrosion resistance.

應 用 Application

● 屏蔽房?jī)?nèi)的電話通信、網絡數據通信、空調控制、消防報警、對講門鈴、音頻、視頻等信號的傳輸和報警控制系統。

Telephone communication, network data communication, air conditioning control, fire alarm, intercom doorbell, audio, video and other signal transmission and alarm control system in shielding room.

● 屏蔽機柜內USB、DB9、VGA、網絡接口的數據通信。

Shield the data communication of USB, DB9, VGA and network interface in the cabinet.

產品型號表 Filter Table

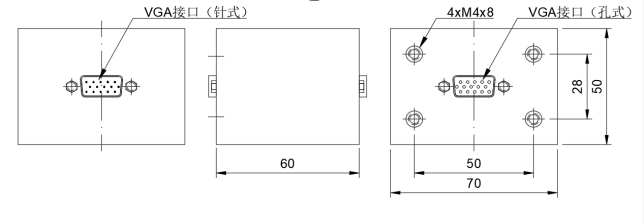

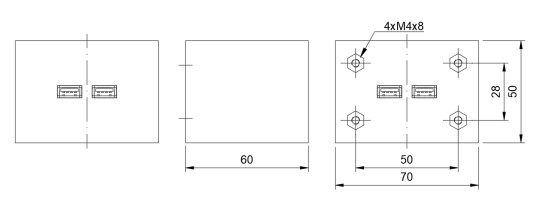

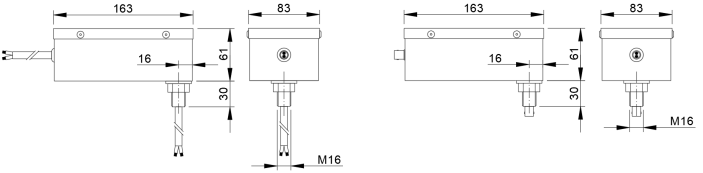

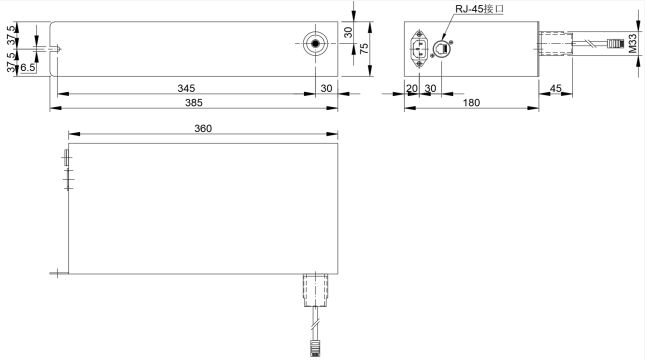

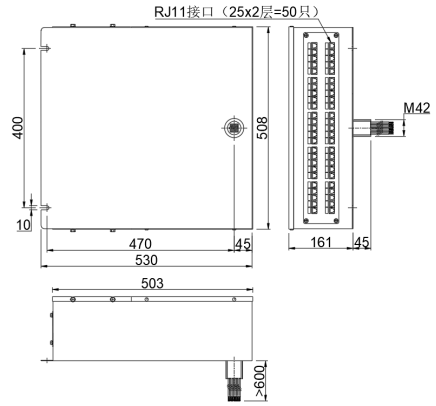

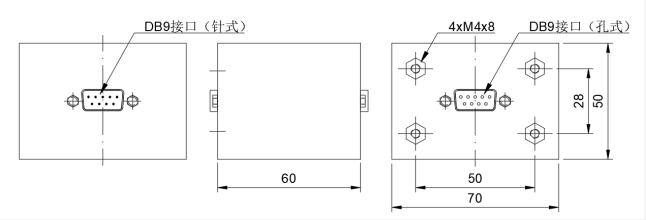

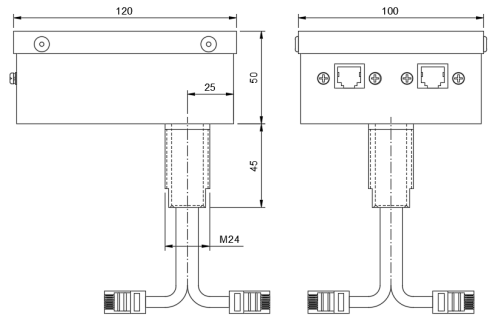

外形尺寸圖 Outline Drawing : mm

Fig.1Fig.2

Fig.3Fig.5

Fig.4

Fig.6

Fig.7

Fig.8

Fig.9

Fig.10

注：更多接口類型、線數及參數請咨詢公司工程部，進行定制。
